| 브랜드 이름: | Raymo |
|---|---|
| 인증: | CE/RoHs/REACH/ISO9001:2015 |
| 모델 번호: | MDM-21PS |
| 문서: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| 가격: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| 지불 조건: | T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000PCS Per Month |
| 온도 범위: | -55~+125℃ | 짝짓기 케이블: | AFR-250, 흰색 와이어 0.1 ~ 0.15mm2 |
|---|---|---|---|
| 누출량: | ≤1.01x10^-3 pa.cm^3/s | 접촉 핀: | 21 핀 |
| 이용 가능한 핀: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 | 와이어 길이: | 50cm, 500mm |
| 케이블 길이: | 요구대로 | 전압 등급: | 250V |
| 강조하다: | J30J series connector 21 pins,J30J connector with white wire,250V J30J series connector |
||
| Attribute | Value |
|---|---|
| Temperature Range | -55～+125 ℃ |
| Mating Cable | AFR-250, White Wire 0.1~0.15mm2 |
| Leak Rate | ≤1.01×10-3 Pa·cm3/s |
| Contact Pin | 21 Pins |

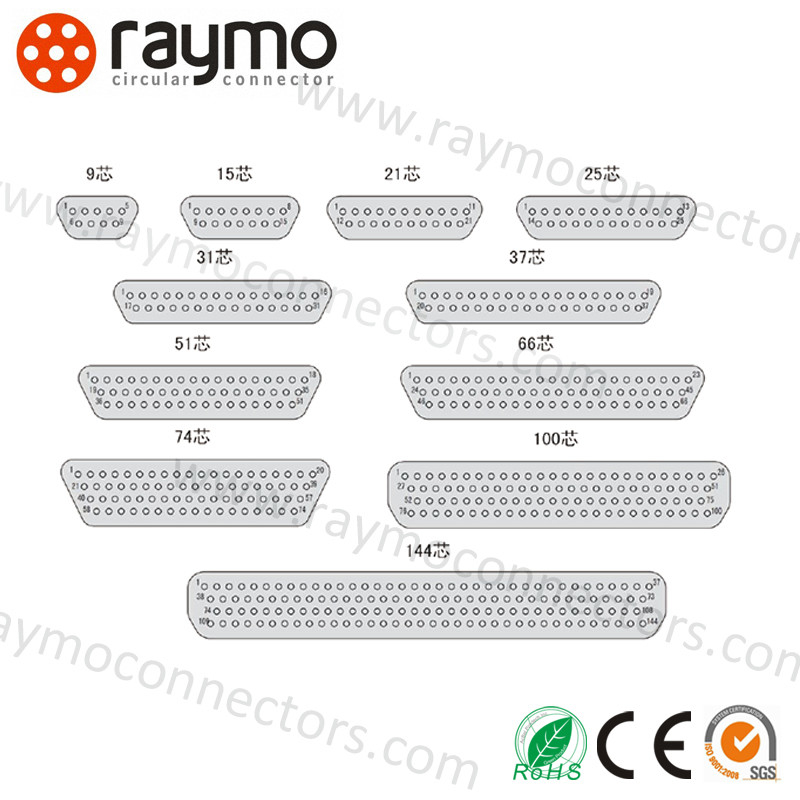

| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Wire Length | 50cm, 500mm |
| Cable Length | Customizable |
| Voltage Rating | 250V |
| Withstanding Voltage | 500VAC |
| Center Conductor | Copper Alloy, Gold Plating |
| Grid Distance | 2.54×2.54mm |
| Certifications | CE, RoHS, REACH, ISO9001:2015 |
