| 브랜드 이름: | Raymo |
|---|---|
| 인증: | CE/RoHs/REACH/ISO9001:2015 |
| Model Number: | RM-J30J |
| 문서: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| 가격: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| 지불 조건: | T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000PCS Per Month |
| 재료: | 금속 | 제품 유형: | 커넥터 |
|---|---|---|---|

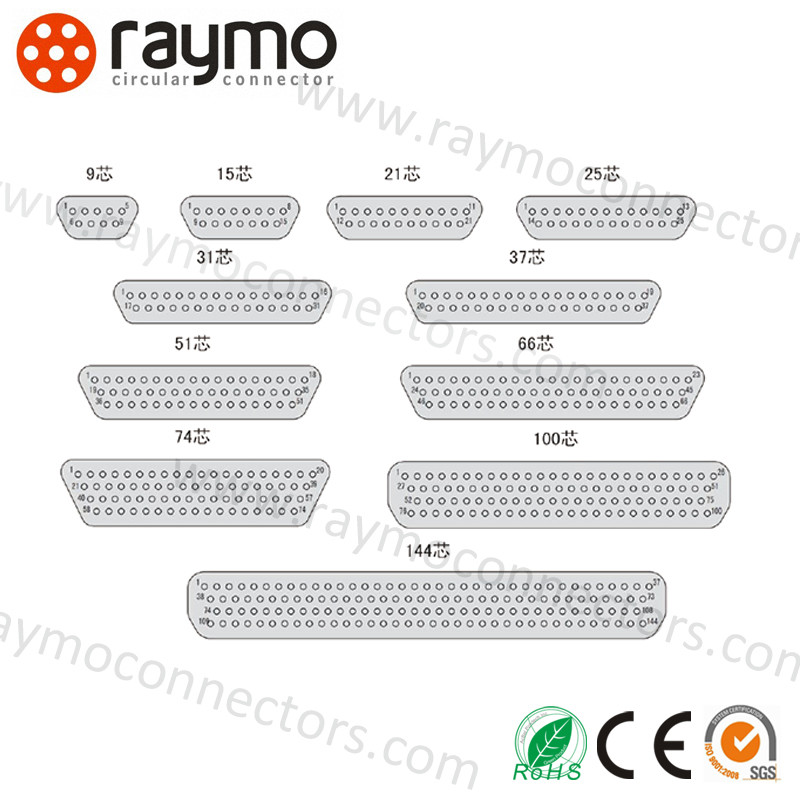

| 현재 등급: | 3A | 접촉: | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| 그리드 거리: | 2.54 × 2.54 | 중심 지휘자: | 구리 합금, 금도금 |
| 단열성 저항: | ≥ 5000 MΩ | 접촉 종결: | 주름 |
| 강조하다: | J30J series metal connector with gold plating,1.27mm contact spacing J30J connector,J30J series gold plated metal connector |
||
| Attribute | Value |
|---|---|
| Material | Metal |
| Product Type | Connector |
| Current Rating | 3A |
| Contact | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Grid Distance | 2.54×2.54 |
| Center Conductor | Copper Alloy, Gold Plating |
| Insulation Resistance | ≥ 5000 MΩ |
| Contact Termination | Crimp |
| Parameter | Value |
|---|---|
| Contact Gender | Male Plug/Female Receptacle |
| DWV | 800V |
| Product Type | Connector |
| Center Conductor | Copper Alloy, Gold Plating |
| Current Rating | 3A |
| Temperature Range | -55～+125°C |
