| 원래 장소: | 라이모 |
|---|---|
| 브랜드 이름: | Raymo |
| Model Number: | RM-2PM |
| Minimum Order Quantity: | 5 |
| 배달 시간: | 2-3 주 |
| 연결 방법: | 나사접속 | 연결기 시리즈: | 2PM 2PX 커넥터 |
|---|---|---|---|
| 짝짓기주기: | 500 번 | 연락처: | 47/8/10/19/20/22/24/30/32/42/45/50 |
| 재료: | 알루미늄 합금 | 셀 크기: | 14/18/22/24/27/30/33/36/39/42/45 |
| 정격 전류: | 5-30A | 특징: | 플러그 앤 플레이 |
| 강조하다: | 2PM connector aluminum alloy,2PM connector 5-30A,threaded 2PM connector |
||
| Attribute | Value |
|---|---|
| Connection Method | Thread Connection |
| Connector Series | 2PM 2PX Connectors |
| Mating Cycles | 500 Times |
| Contacts | 47/8/10/19/20/22/24/30/32/42/45/50 |
| Material | Aluminum Alloy |
| Shell size | 14/18/22/24/27/30/33/36/39/42/45 |
| Rated Current | 5-30A |
| Features | Plug And Play |

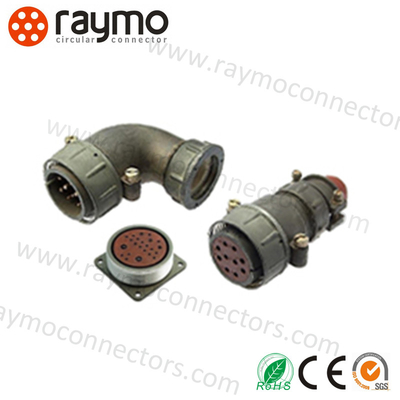

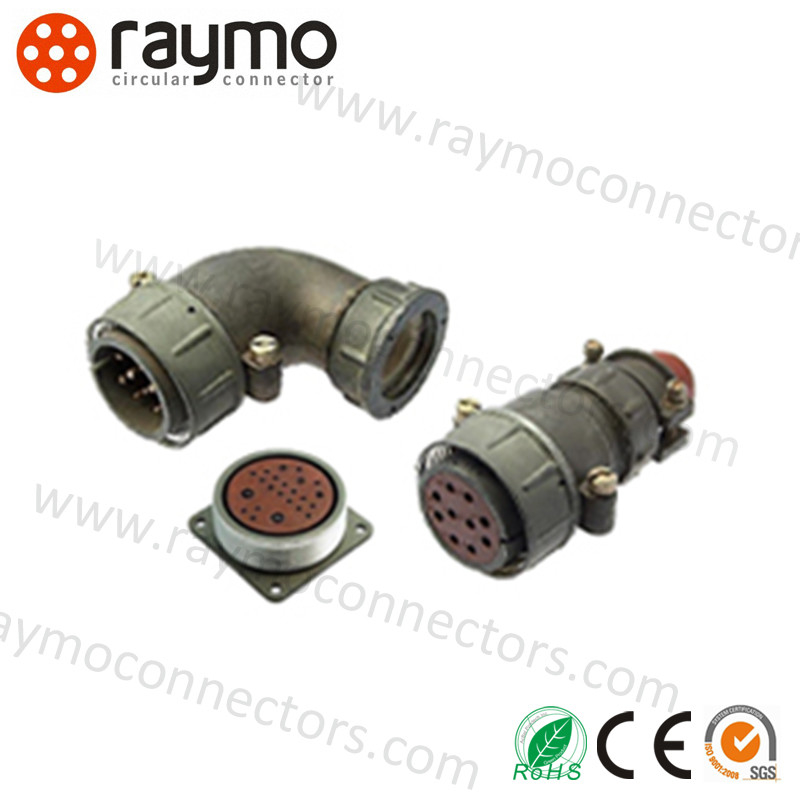

The 2PM Connector is a high-performance electrical connector from the renowned 2PM 2PX Connector Series, designed for industrial and commercial applications requiring reliable power transmission.
| Parameter | Specification |
|---|---|
| Size | Small |
| Contacts | 47/8/10/19/20/22/24/30/32/42/45/50 |
| Contact Material | Copper with Silver/Gold Plated |
| Operating Temperature | -60°C to +200°C |
Our technical support team provides comprehensive assistance for product selection, installation guidance, and troubleshooting to ensure optimal performance of your 2PM Connector systems.
