| 원래 장소: | 센즈헨, 중국 |
|---|---|
| 브랜드 이름: | RAYMO |
| 인증: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| 모델 번호: | FGG PHG 1B 308 |
| 최소 주문 수량: | 1piece |
| 가격: | negotiable |
| 포장 세부 사항: | 100 pc / 카튼 |
| 배달 시간: | 5-7 근무일 |
| 지불 조건: | 서부 동맹, T/T, D/P, D/A, L/C, MoneyGram |
| 공급 능력: | 5000pcs/week |
| 상품 이름: | 푸시-풀 연결관 | 타입: | 마개 |
|---|---|---|---|
| 포탄 크기: | 1B 시리즈 | 접촉 아니.: | 8개의 핀 |
| 맨끝: | 땜납 | IP 순위: | IP50 |
| 강조하다: | OD12mm 순환 푸쉬 풀 Connectors,IP50 순환 푸쉬 풀 Connectors,1B 8 핀 원형커넥터 |
||

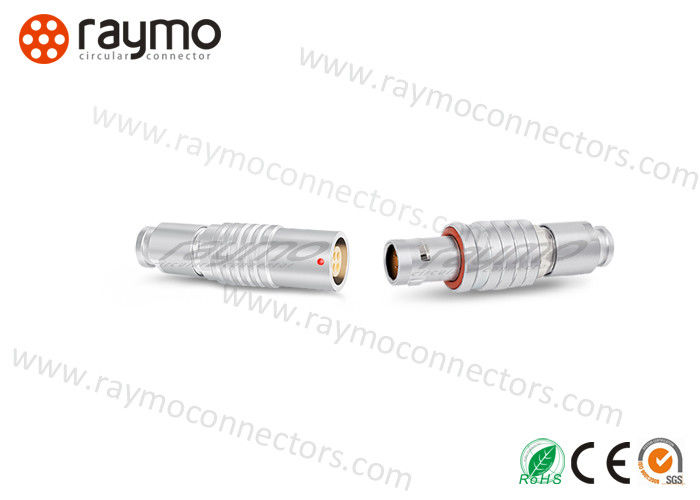

OD12mm male female cable to cable electrical audio vedio plug socket, 8 pin circular connector
100% compatible with LEMO original FGG PHG 1B 308
PHG.1B.308.CLLD52Z = RM-PHG-1BC-308-KS52Z .Free socket with key(G) and cable collet, 1B series, multipole 8 contacts, outer shell in natural chrome-plated brass, PPS insulator, female solder contacts, collet for 4.2-5.2mm diameter cable, nut with fitting a bend relief, IP50.
We are specilized in many kinds of alternative connector such as:
1/ LEMO B, K,S, P series
2/ Fishcer core series 102, 103, 1031, 104, 105
3/ Hirose HR10A series
4/ Binder M16 680, 678, 598, 423 series
5/ OEM series

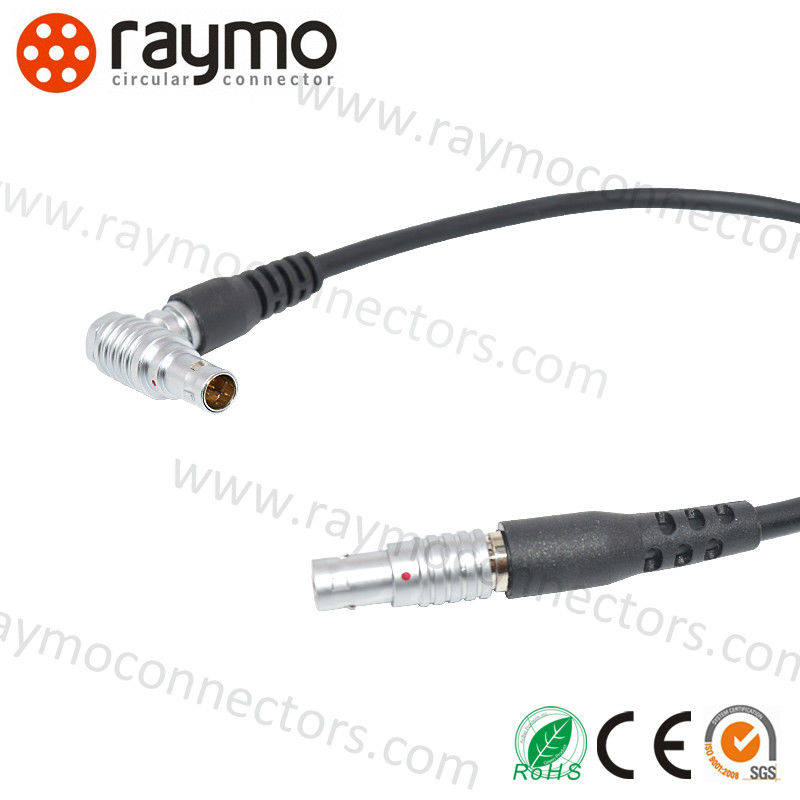

6/ Cable assemblies
Series B metal circular connectors in many size and outer diameter for different applications are designed to be compatible with connector Series B which with a self-latching system for easy operations.
| Shell size | Contacts no. With Solder & PCB type | |||||||||||||
| 00 | 2 | 3 | 4 | |||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | |||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | |||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | 26 | |
| 3B | 3 | 4 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 30 | |||
