| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | RAYMO |
| 인증: | ISO9001/ CE/ ROHS2.0/ SGS |
| 모델 번호: | RM-PAG RM-PKG |
| 최소 주문 수량: | 1 PC |
| 가격: | negotiable |
| 포장 세부 사항: | 통 |
| 배달 시간: | 5-7 근무일 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 주 당 5000pcs |
| 상품 이름: | 원형 플라스틱 연결관 | 애플리케이션: | 의학 ECG 기계 |
|---|---|---|---|
| 포탄 크기: | 1P | 접촉: | 2-14P |
| 접촉 물자: | 구리 | 보호 지수: | IP50 |
| 연결 시간: | 2000년 | 샘플: | 자유롭게 |
| 강조하다: | PAG PKG 순환 플라스틱 커넥터,ECG 기계 순환 플라스틱 커넥터,1P ECG 기계 원형커넥터 |
||

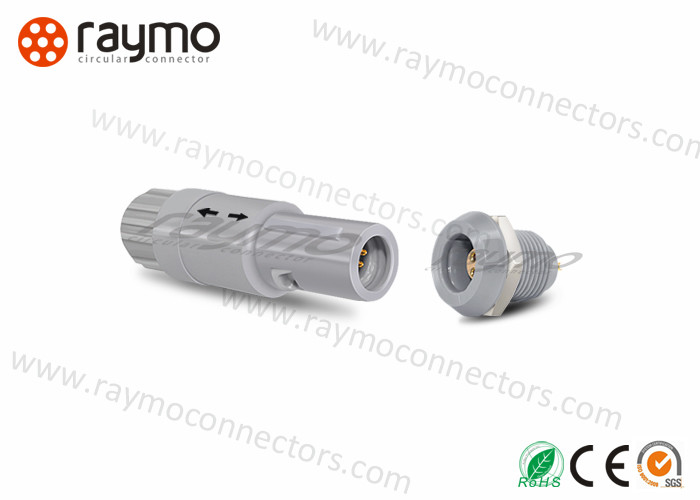

PAG PKG Medical ECG Machine Signal Transfer Circular Plastic Connectors
Prct Description:
RM-P series are mainly used in medical world. compatible with original, and these can be sterilizable. Single-use (called disposable connectors too) are also available when sterilization is not an option. The Push-Pull connectors are easy to manipulate and are available in IP50 and IP68 version. These connectors can be used for a large variety of medical devices, for instance in the operating theatres and in intensive care.
Example: RM-PKG-1PC-307-KS=PKG.M0.7GL.LA
Fixed receptacle with two nuts and alignment key(G=0 degree), multipole 7 female contacts in solder type, blue color PC outer shell, PPS insulator, blue color plastic front nut.
| Shell size | Contacts no. With Solder & PCB type | |||||||||
| 1P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 14 |
| Nut color | Gray | blue | yellow | black | red | green |
Features of RM-P series medical push pull circular plastic connector:
-Push-Pull self-latching
-2 sizes
-Several keying options
-6 colour codings
-Over 12 shell styles
-Temp. range -50°C to 150°C
-White, gray or black outer shell
-IP50
-For cable ø 2.7 to 9.5 mm
Applications of Circular plastic Connectors
•Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
•Medical equipments like Disposable equipment
•Test & measurement like Data acquisition
•Broadcast, like HD and SD cameras
Our company
• Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly.
• Can be 100% compatible with original
• OEM are acceptable
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
• All the items can work normally after 5000 times mating
RAYMO has already established an integrated quality control system from R&D, supply chain, marketing, sales, after-sales service to meet customer deeper demand, and expect to achieve Raymo’s globalization strategy.
FAQ
- Do you provide free sample?
RAYMO: Available. Any needs, please contact us.
-What about the delivery time?
A: sample for 3-5 working days, mass prction for 5-7 working days.
-Does your prct have any warranty?
A: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
-Can I use my own logo on the prcts?
A:Yes, customers' logo, size and design are acceptable, OEM&ODM are welcomed.
-What’s your strength in logistics?
A: We have the long-term cooperated forwarder, can get the most favorable shipping cost, international express, by air or by sea, all are available. We can give you cost saving suggestions to save your purchasing cost.
